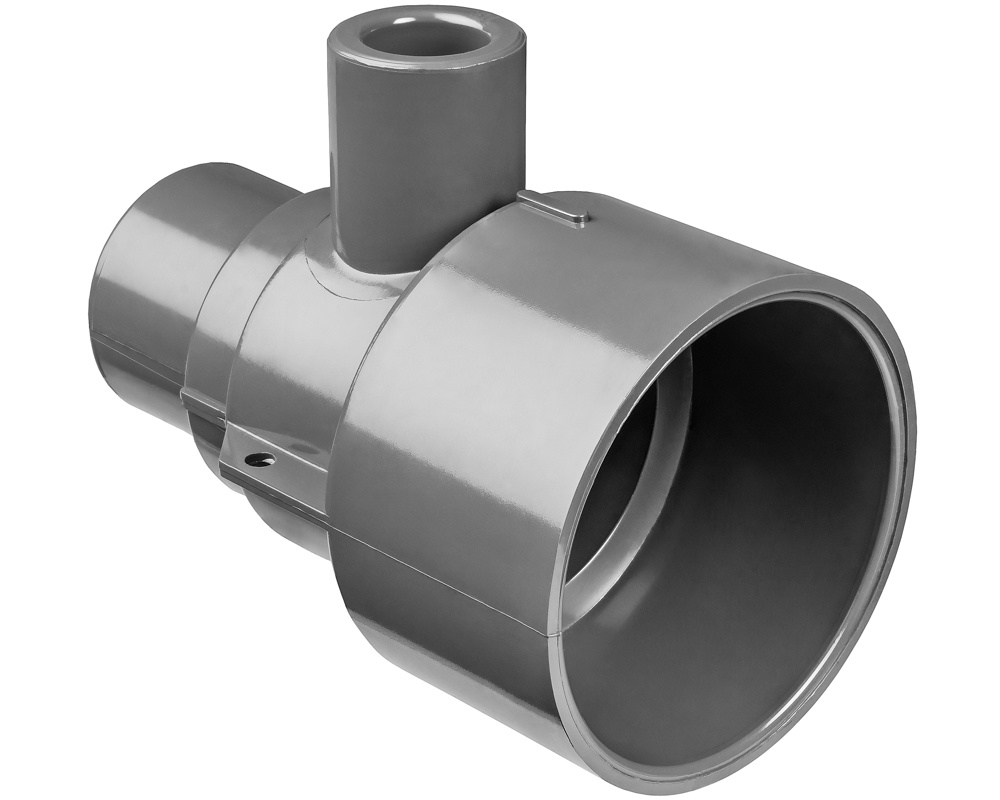

Waterway Gunite metric straight body

This straight jet body is part of the Waterway Poly Jet and Poly Storm Gunite jets in metric versions, designed for concrete spas.

The complete Poly Jet and Poly Storm Gunite jet assemblies are also available.

Dimensions
Total length: 138 mm
Face diameter (internal) : 75 mm, for 75 mm pipe
Face diameter (external): 85 mm

Water pipe connection
Inside diameter : 32 mm, to connect a 32 mm pipe

Air pipe connection
Inside diameter : 20 mm, to connect a 20 mm pipe

Part numbers
Waterway: 211-3107
