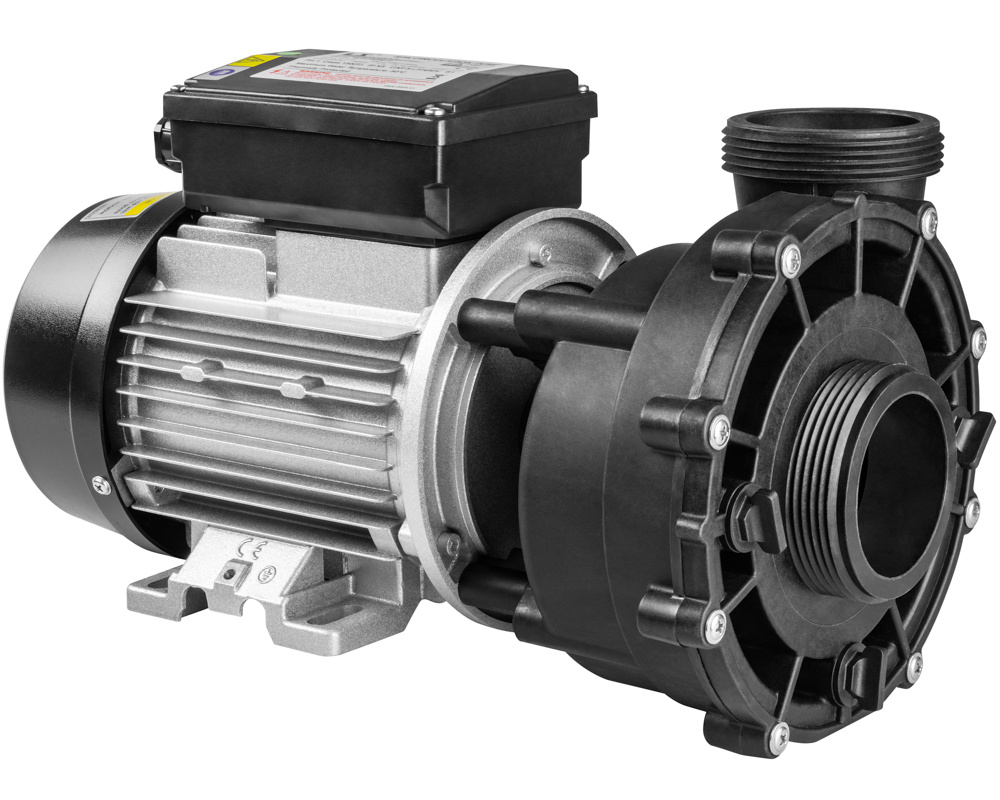

LX Whirlpool WTC50M-C circulation pump

The LX Whirlpool WTC50M-C filtration pump has the same power as the WTC50M model, but has a larger wet end. It also runs at 1450 rpm, half the speed of other LX Whirlpool pumps, and makes considerably less noise than the JA35 circulation pump, for example, despite similar power.

Suitable for all types of spas, it is the perfect replacement for Aqua-Flo's Circ-Master XP (CMXP).

Technical specifications
Power: 250 W (0.33 HP)
Speed: 1400 rpm
Maximum flow rate: 240 litres/minute
Capacitor: 7 µF

Dimensions
Length: 360 mm
Width: 160 mm
Height: 190 mm

Plumbing connections
Thread diameter: 78 mm (2-inch MBT)
Pump unions and o-rings for 1.5-inch pipes are supplied. We also offer compatible pipe unions for 2-inch and 63 mm pipes.

Cable and plug
The LX Whirlpool WTC50M-C circulation pump is supplied pre-cabled with an AMP plug (length 130 cm).

Installations equipped with a mini J&J plug must use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2 years Tubs Parts warranty

Part numbers
LX Whirlpool: WTC50-C

Wet end orientation

Standard exit

Exit to left

Exit to right

Plug types

AMP plug

J&J plug

in.link plug
