Koller 0.16 HP circulation pump, center suction

In stock
189,00€
incl. 20% VAT
Quantity:
Koller 0.16 HP circulation pump, center suction - Click to enlarge
Koller 0.16 HP circulation pump, center suction - Click to enlarge
Koller 0.16 HP circulation pump, center suction - Click to enlarge
Koller 0.16 HP circulation pump, center suction - Click to enlarge
Koller 0.16 HP circulation pump, center suction - Click to enlarge
Koller 0.16 HP circulation pump, center suction - Click to enlarge

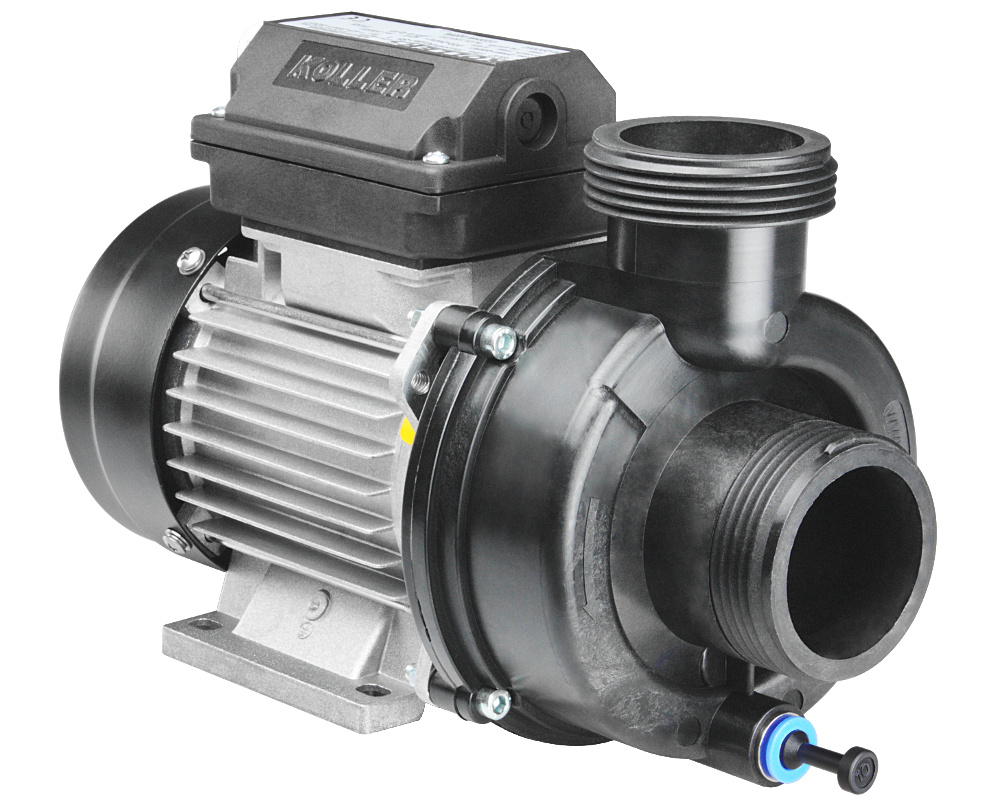

This Koller 0.16 HP circulation pump is found in many European spas.

The drain hole situated at the bottom of the faceplate is closed with a plug which is also available as a spare part.

We also stock other Koller circulation pumps with center suction from the same serie including the 0.27 HP, 0.40 HP and 0.54 HP, as well as the self drain 0.27 HP and 0.54 HP models.

Dimensions
Length: 267 mm
Width: 136 mm
Height: 178 mm

Technical specifications
Power: 120 W (0.16 HP)
Speed: 2800 rpm
Maximum flow rate: 132 litres/minute

Connections
Thread diameter: 62 mm (1.5-inch MBT)
The pump unions are not included, but are available separately. We sell unions for 1.5-inch pipe

Cables and plugs

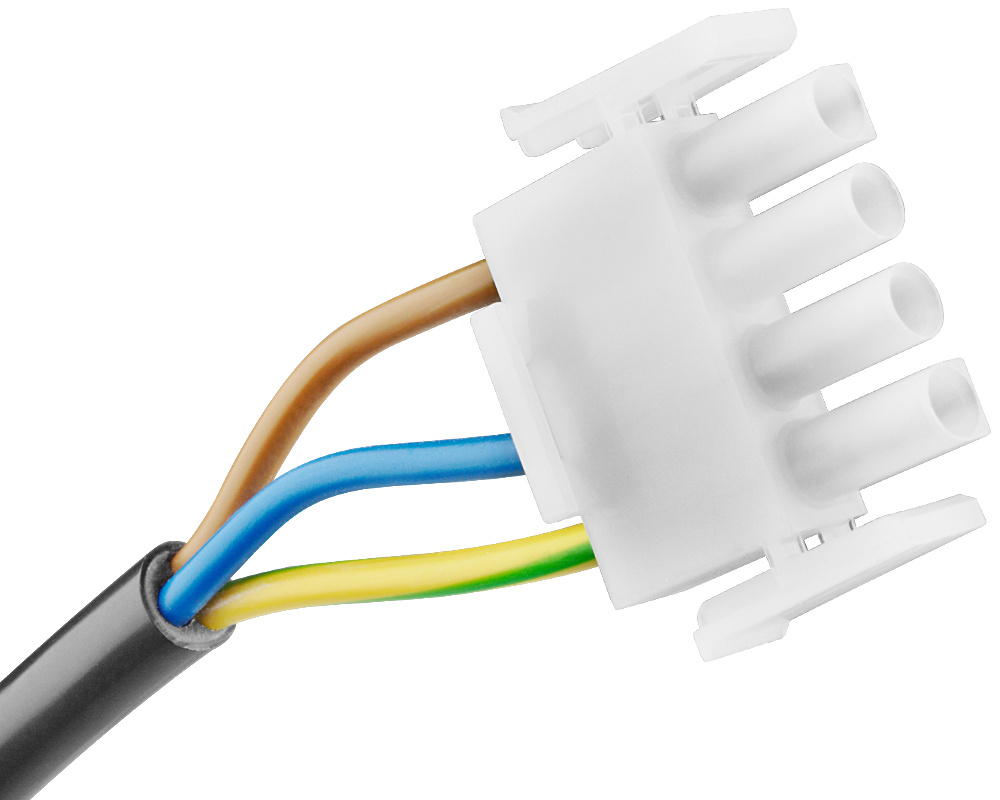

The Koller 0.16 HP circulation pump is delivered pre-cabled with an AMP plug (length 3 m). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Similar pump
The Laing E14 pump is less powerful but it has the same thread size as the 0.16 HP Koller with center suction. The dimensions however are different. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Koller: 136-120 WC

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
