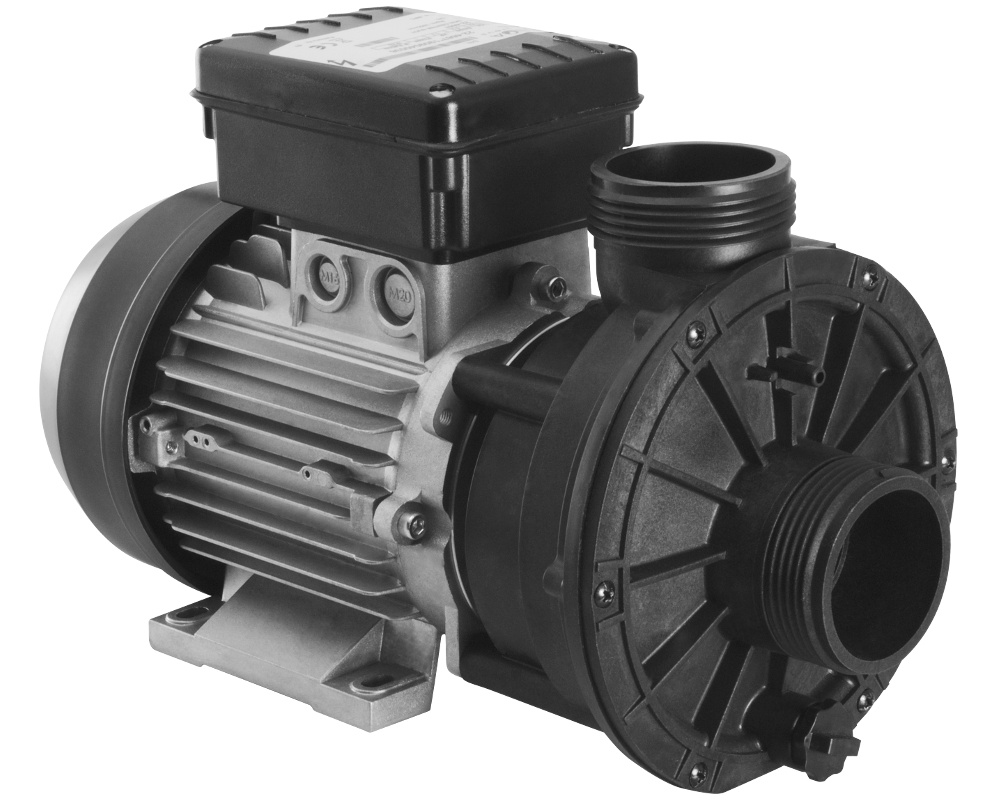

HydroAir HA460 centre suction pump

The HydroAir HA460 centre suction pump is a powerful, yet quiet pump used by many spa manufacturers and offering excellent performance. This is a single-speed pump, used to operate massage jets in spas and on swimming-pools. It also has a self drain wet end.

This pump has an integrated air switch. If you don't know what this means, then you almost certainly need the version WITHOUT an air switch.

The wet end seal (part number PS-1000) is available as a spare part.

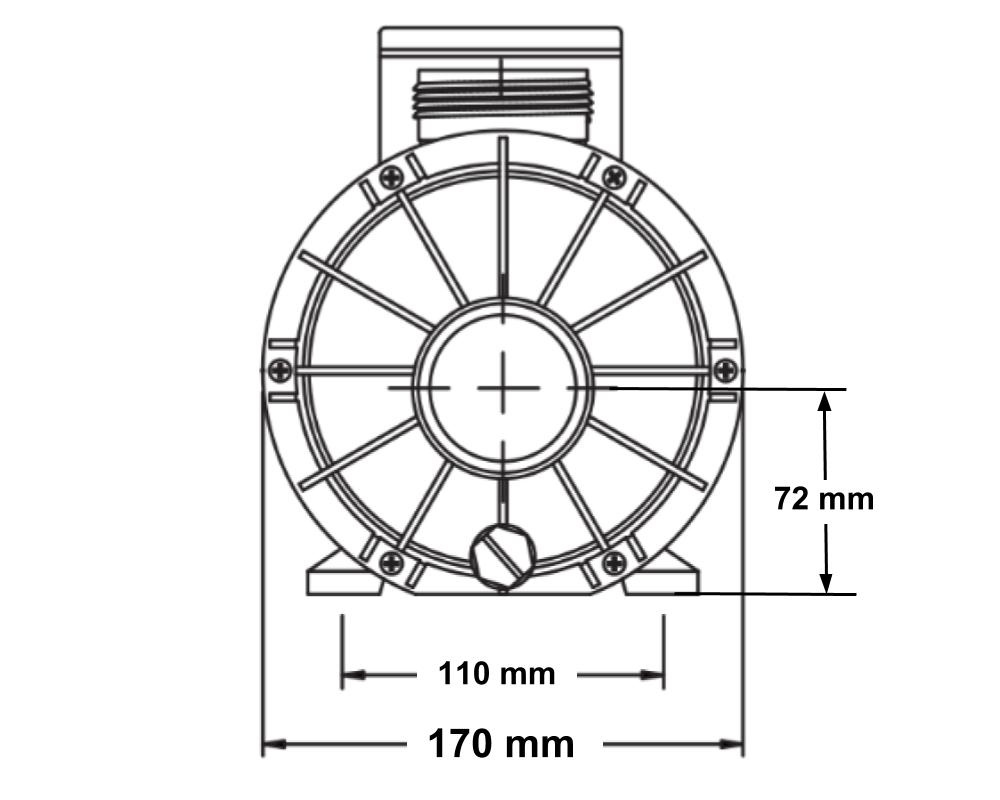

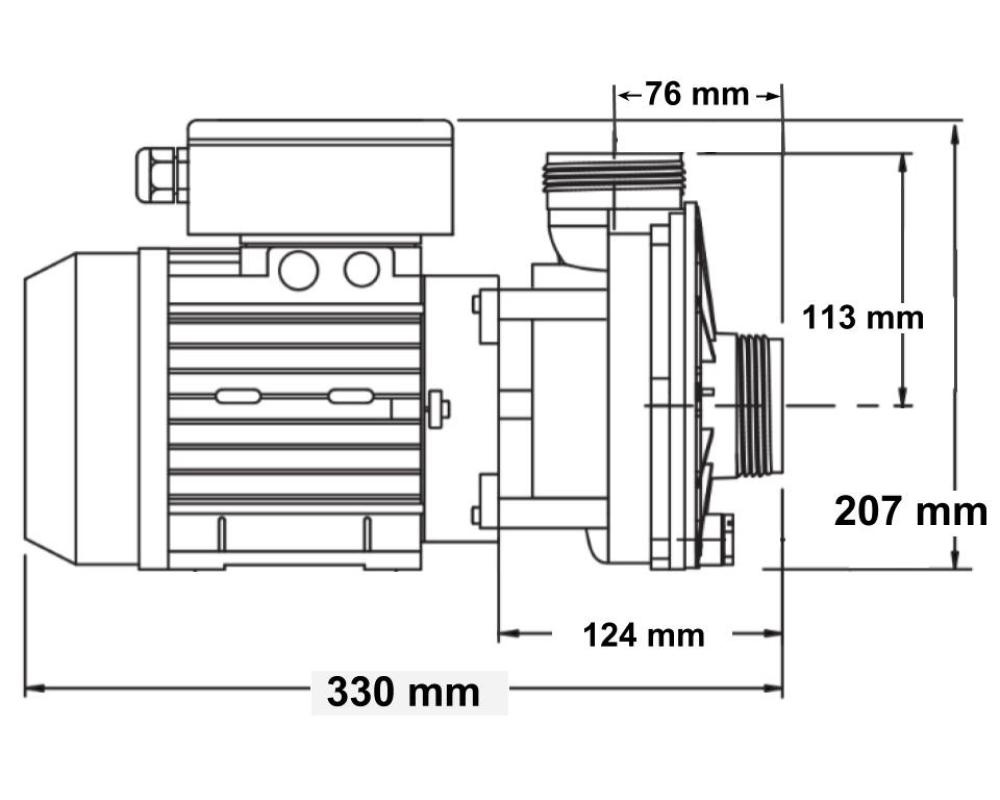

Dimensions
Length: 330 mm
Width: 170 mm
Height: 207 mm

Technical specification
Power: 1.3 kW (1.7 HP)

Pipe connections
Male thread (1.5-inch MBT) with a 62 mm outside diameter.
This pump is delivered without unions. We offer 1.5-inch pump unions.

Cable and plug
The HydroAir HA460 centre suction pump pump is delivered pre-cabled without plug (length 200 cm) or with a AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

HydroAir part numbers
Standard version: 22-4667 (replaces 21-4655 and 21-4667)
Pneumatically-controlled: 22-46671 (replaces 21-46551 and 21-46671)

Plug types

AMP plug

J&J plug

in.link plug
