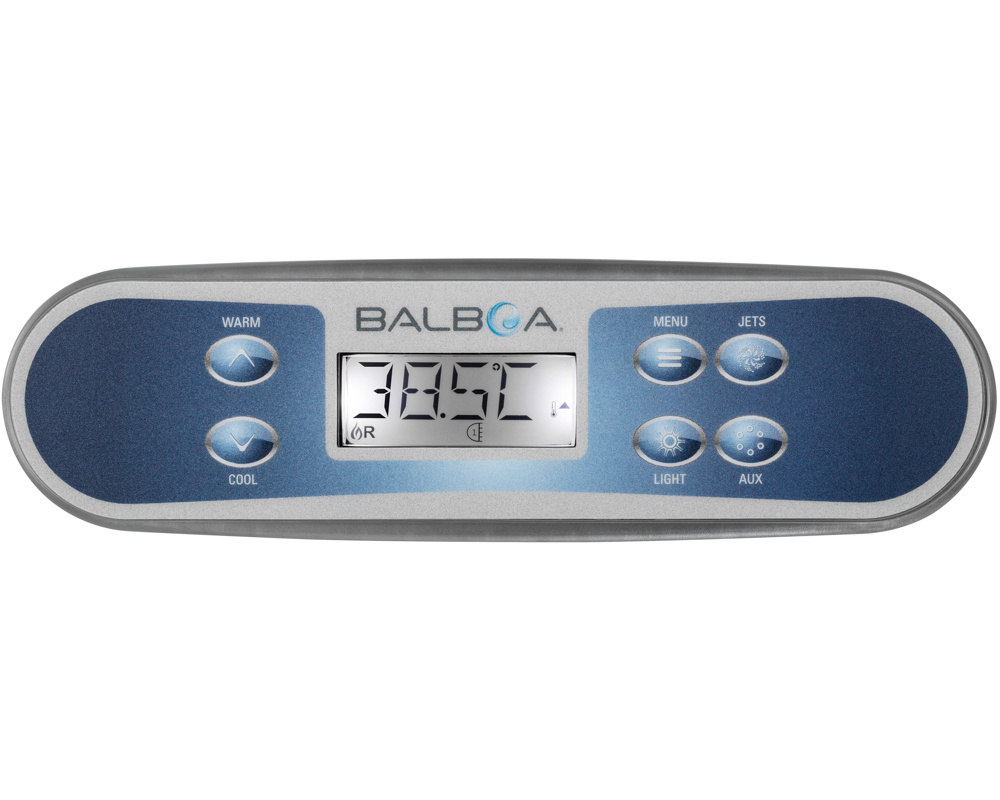

Balboa TP540 control panel

As a successor to the TP400T and TP400W, Balboa's TP540 is compatible with the full range of BP control systems: BP200 UX, BP601 3G1, BP601 3G2, BP601 3G3, BP2100G1 and BP8.

The keypad has 6 keys: Warm, Cool, Menu, Light, Jets, Aux.

It is supplied without its self-adhesive overlay, to be purchased separately.

Dimensions
Keypad: 212 x 60 mm
Driling size: 185 mm x 50 mm
Cable length: approximately 170 cm

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa: G8454, replaces part number 57310

User’s Manual
