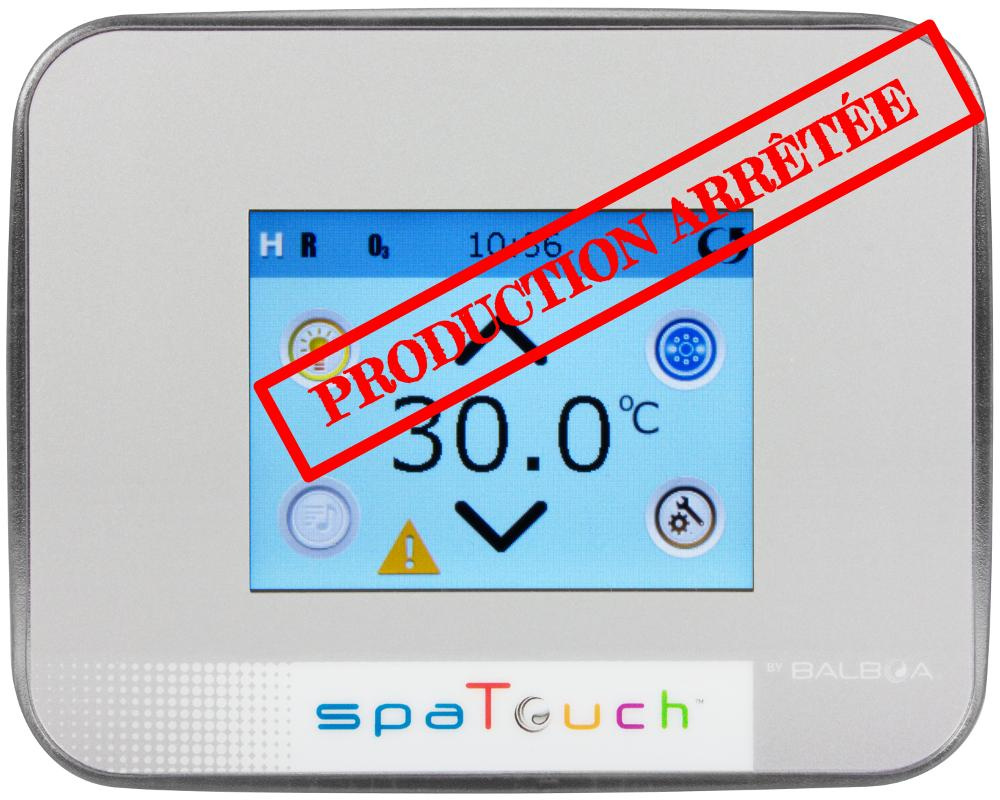

The spaTouch is no longer manufactured by Balboa and has been replaced by the spaTouch 2 and spaTouch 3 versions.

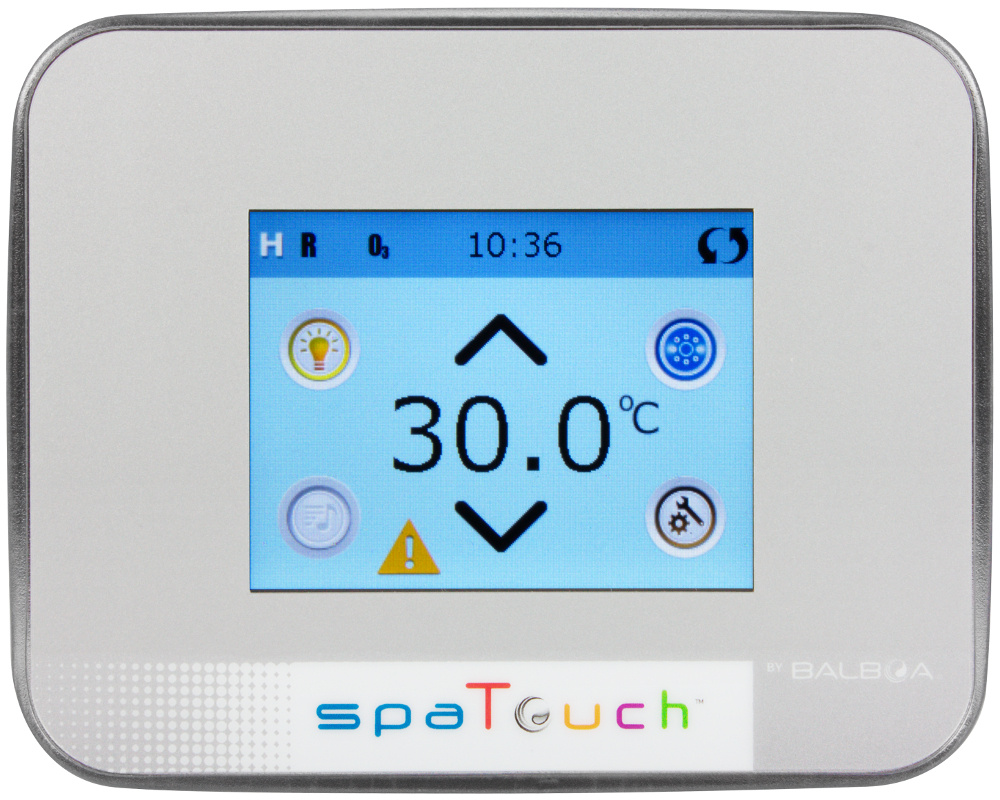

The Balboa SpaTouch is a touch-sensitive screen that replaces a conventional hot tub keypad. It is compatible with all BP systems that already support the TP800 and/or the TP900:BP200G1, BP200UX, BP6013G1, BP6013G2, BP6013G3 and BP2100G1.

If this panel is used with a system that supports only the TP400 model T or model W and/or the TP600, many screens will work correctly, and the spa screen will try to display all of your equipments, but in some cases it may not display correctly.

This keyboard is supplied with its overlay, also available separately.

Dimensions
Length: 141 mm
Width: 112 mm
Cut-out area : 119 x 89 mm

Part numbers
Balboa : 50587 (with Overlay)
Balboa : 50586 (without Overlay)
Sunrise Spas : R6021755

Documentation
