Balboa pneumatic control box with 2 functions
Only 1 in stock
115,50€
incl. 20% VAT

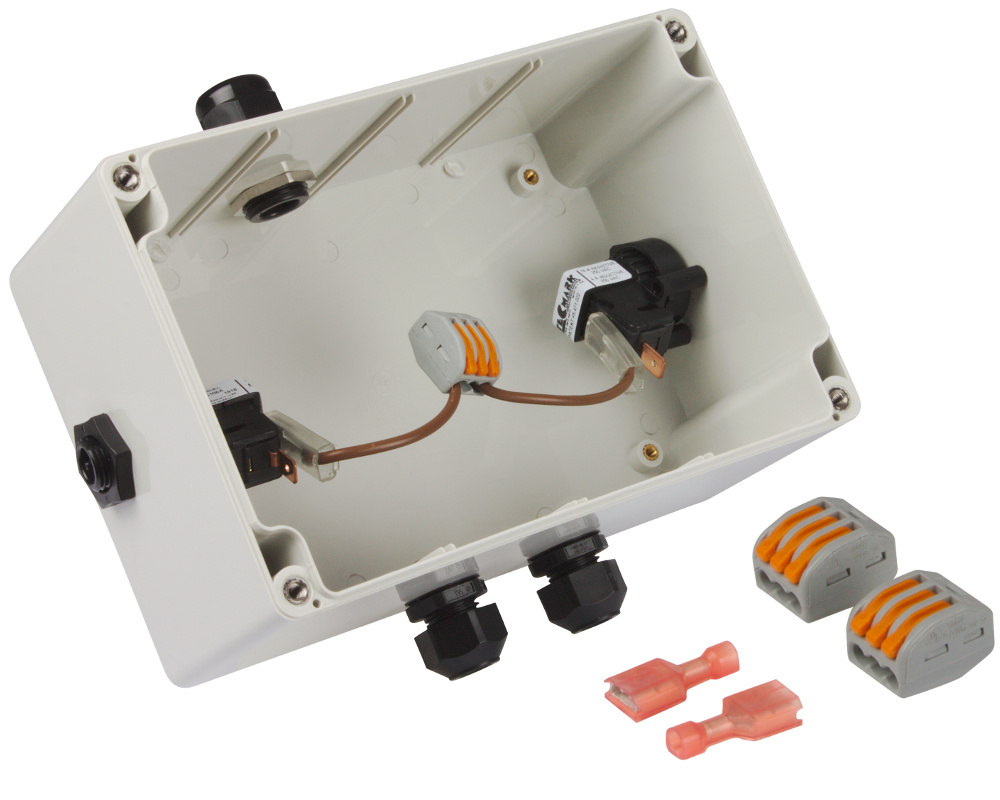

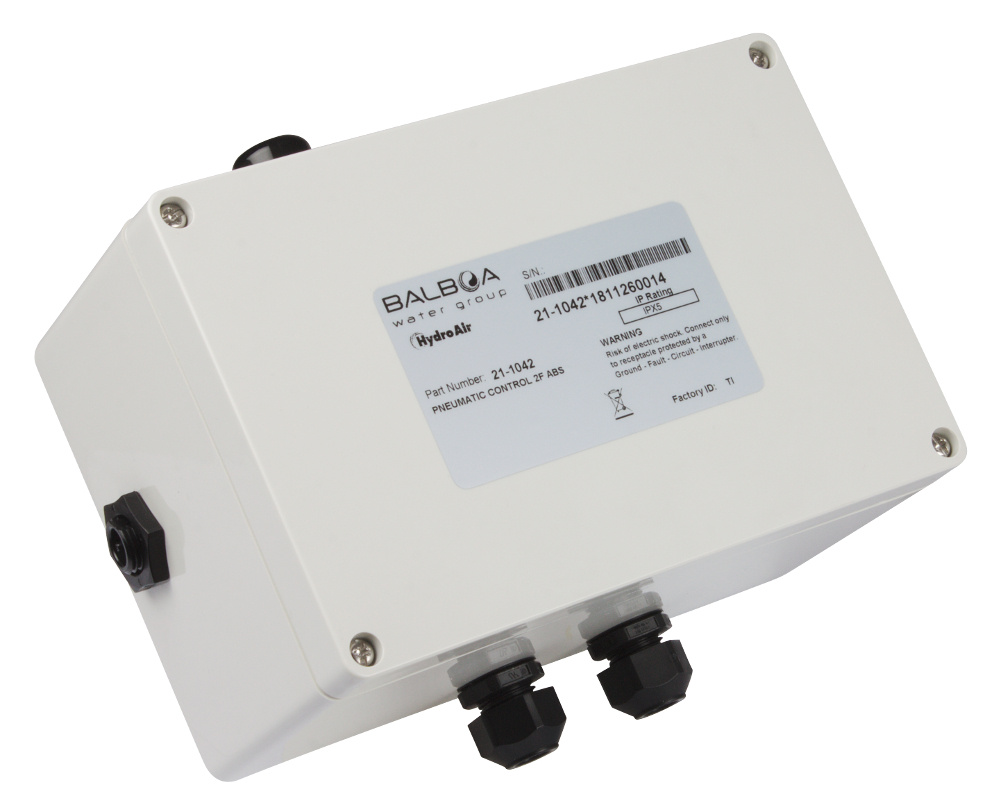

This Balboa box with two latching air switches is ideal if you don't have enough space to install a complete control system and you only want to control two elements in your spa: pump, blower, etc.
In addition to two air switches, the box contains a gasket, three cable glands and three Wago 222 Series non-fused terminal blocks, 3 way/pole
We also offer this box with one latching air switch.
Dimensions
Length: 140 mm
Width: 80 mm
Depth: 65 mm
Technical specifications
Rated voltage: 230V, 50/60 Hz, 1 phase
Rated current on each switch: 16A Resistive or 4A Inductive
Ingress prot. front: IPX5
Part numbers
Balboa: 21-1042
Air switch (x2): 41-0255, TBS106A
Documentation
