SpaNet-Wärmepumpen-Set SV-series + SV3-VH + SmartTouch

Auf Bestellung
2895,00€
inkl. 20% MwSt.
Menge:
SpaNet-Wärmepumpen-Set SV-series + SV3-VH + SmartTouch - Zum Vergrößern klicken

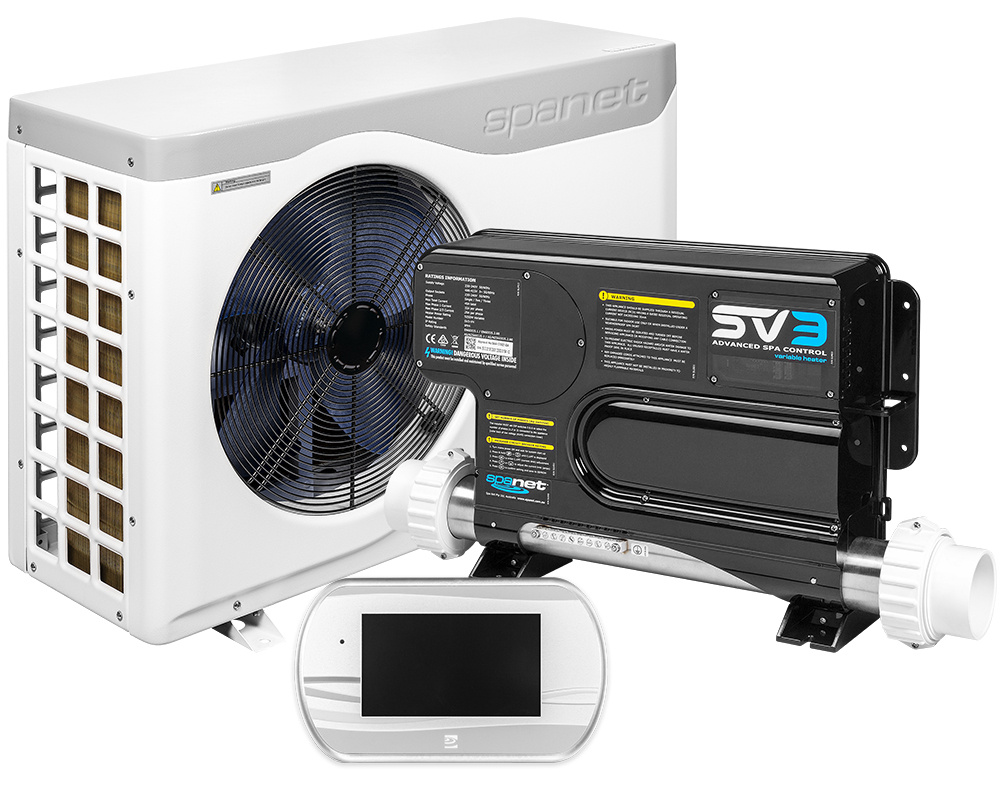

Our SpaNet Heat Pump Kit includes the SV3-VH control system, the SV-series heat pump (heating capacity of 5.6 kW) and the SmartTouch touch pad. Whether you're considering upgrading your spa with a heat pump, or replacing all of your existing equipment to reduce your electricity consumption, this kit, which features the key components to efficiently control and heat your spa, is ideal for spas up to 2,500 liters.

The SV-series heat pump is perfect for heating spas and swim spas all year round while reducing energy consumption (SpaNet claims up to 75% savings in energy consumption compared to electric heaters). If connected, the SV controller will automatically detect the pump and regulate its functions. No additional electrical circuitry is required.

The heat pump is directly connected to the SpaNet SV3-VH control system via a dedicated interface. Along with its built-in 5.25 kW intelligent variable heater, the SpaNet SV3-VH control system can handle up to one circulation pump and 3 single speed pumps or 1 dual speed pump and 1 single speed pump. It also manages a blower, an ozonator, a spotlight and your spa's audio system.

The heat pump is automatically detected by the control system and the SmartTouch keypad with a 4.3" touch screen, as soon as the pump is connected. No additional electrical circuitry or keyboard is required: the control system and the heat pump with all temperature and mode settings are managed by the same keyboard.

Dimensions of the SV3-VH
Height: 309 mm
Width: 449 mm ( box without heater), 544 mm (heater with connections)
Depth: 90 mm
Heater connection: 2 inch pipes (clamping rings and gaskets supplied)

Dimensions and performances of the SV-series heat pump
Width : 960 mm
Height : 615 mm
Depth : 320 mm
Supplied with 50 mm pipe fittings and joints.

Temperatures Heating capacity Cooling capacity Power input COP*
25°C air, 27°C water 5.6 kW x 1.1 kW 5.8
15°C air, 27°C water 4.33 kW x 1.1 kW 5.0
25°C air, 27°C water x 3,8 kW 1.1 kW 2,9 (EER**)

*COP = Coefficient of Performance
** EER = Energy Efficiency Ratio

Dimensions of the SmartTouch
Keypad: 170 x 100 mm
Cut out area: 145 x 74 mm

To control your spa remotely, you can also add the SV SmartLink WiFi module and its SpaLink smart device application, which allows you to connect to your spa and manage all its equipment (including the heat pump) via a 3G or 4G WiFi network. You can access your spa from anywhere at any time.

Warranty
2-year Tubs Parts warranty

SpaNet part numbers
Control system : SV3-VH
SV-series heat pump : SN-HP-55P
SmartTouch keypad : SVT43-V2
